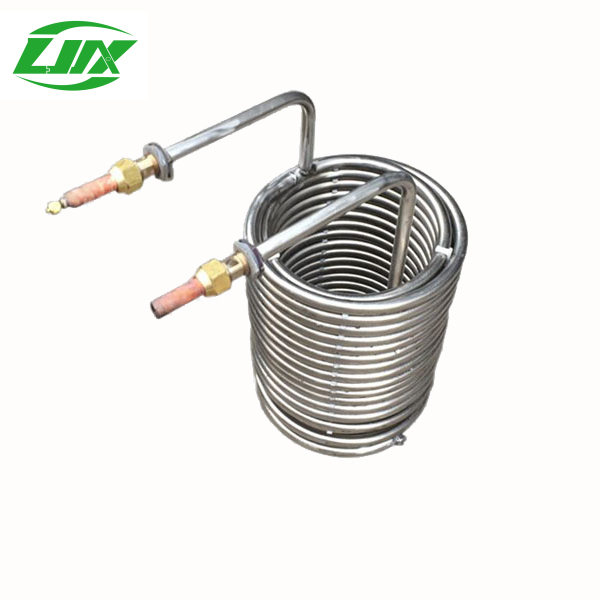

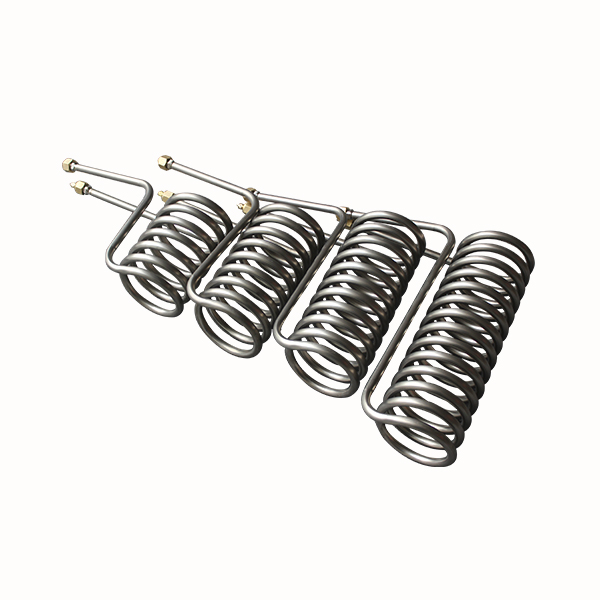

Coil heat exchanger is easy to clean and install, fast refrigeration , energy saving and high efficient characteristics , can be used for liquid heating or cooling.
1)Refrigerant: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater,saltwater, ground water etc .
Material: Pure Titanium 、316L/304 Stainless Steel、Copper
Cooling Capacity: 10-850 kw,Support customization
Turns: 4.5-18.5 circles, support customization
Specification: 9.52*0.8 12.7*0.8 16*0.8 19*0.55 19*0.8 19*1.0 25*1.0 25*1.2
Specs for the exchanger range from 1-60 HP
Please contact us with your drawings and samples for manufacturing

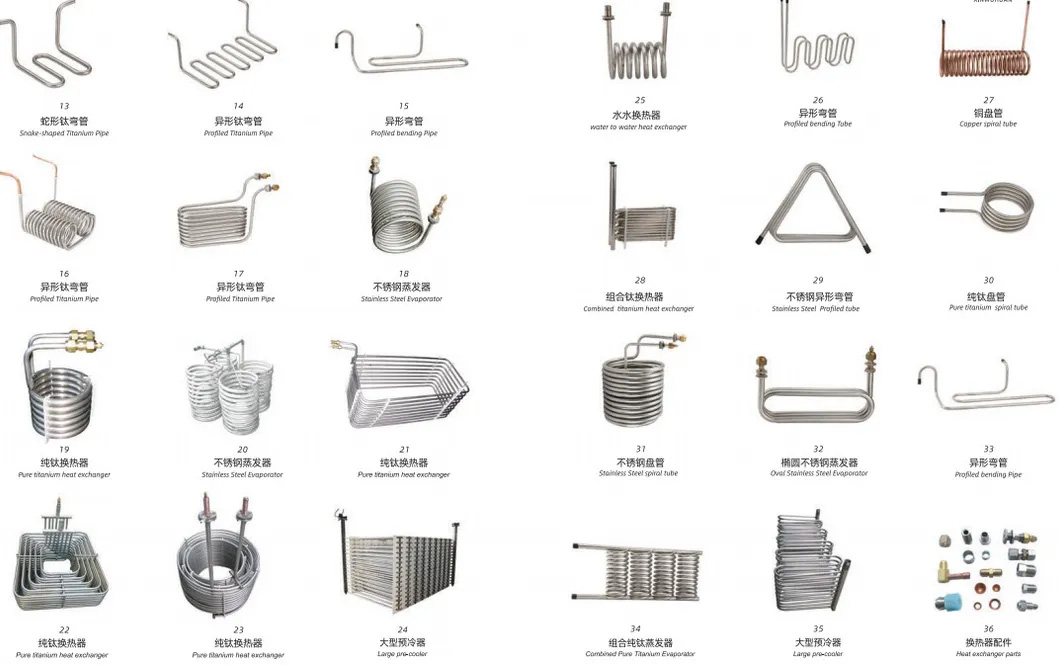

Customized coil heat exhanger
Wuxi Lvjie Machinery Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
FAQ:
1.Are you factory?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please
advise us the Type of heat exchangers, Material , Heat Exchanger
Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon
Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry
Product feature

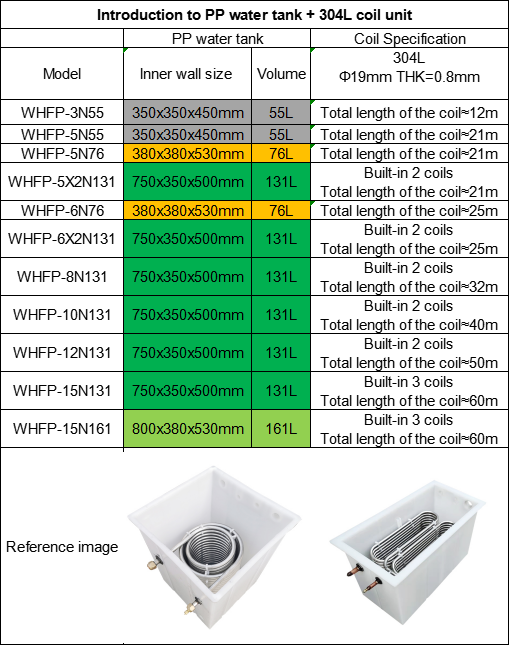

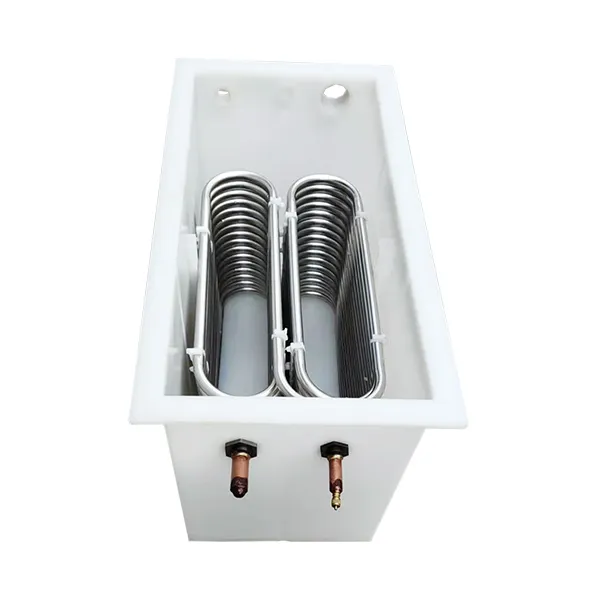

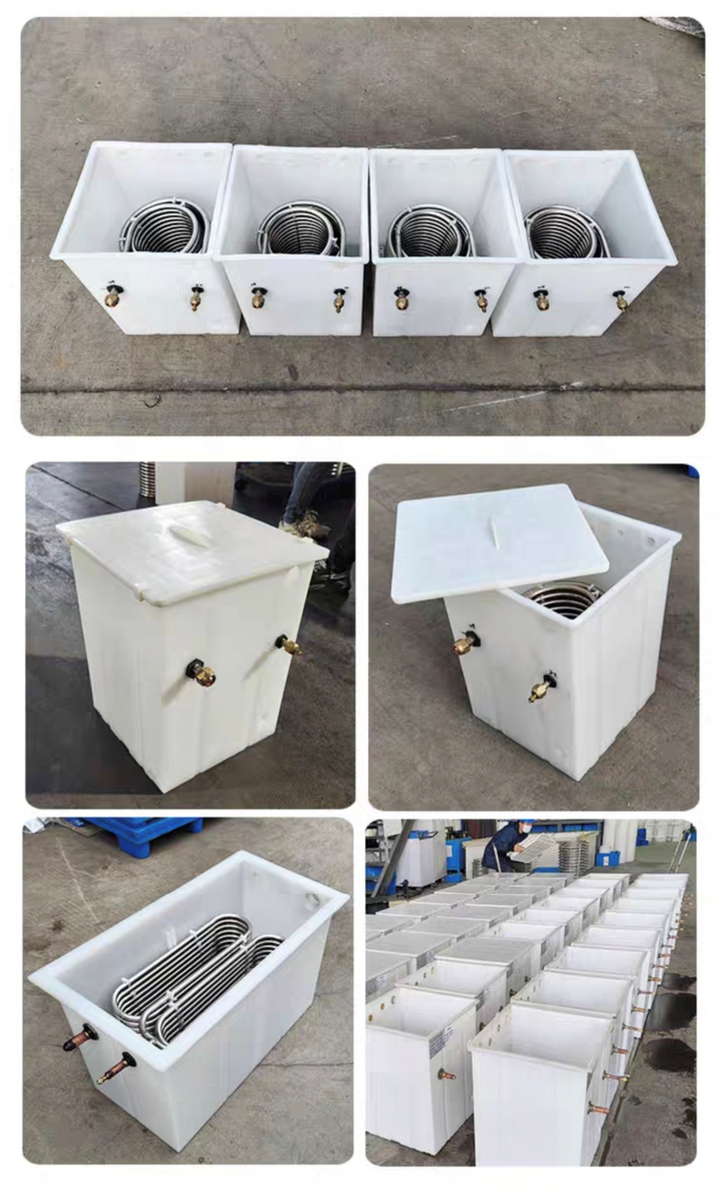

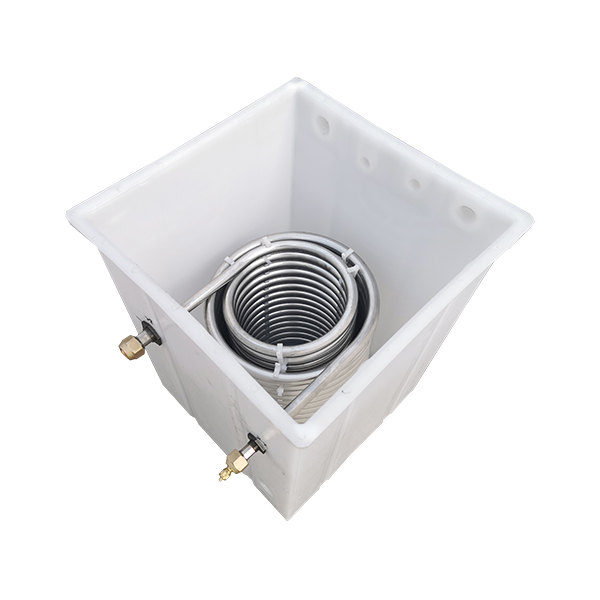

-The shell is made of PP (polypropylene) plastic, which is integrally formed, without welding points and leakage
-Built-in coil supports customization
-The water tank has threaded openings for easy installation
