Long Life Tube Bundle Condenser Boat Engine Heat Exchanger Energy Save Heat Exchanger

Work Condition:
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC

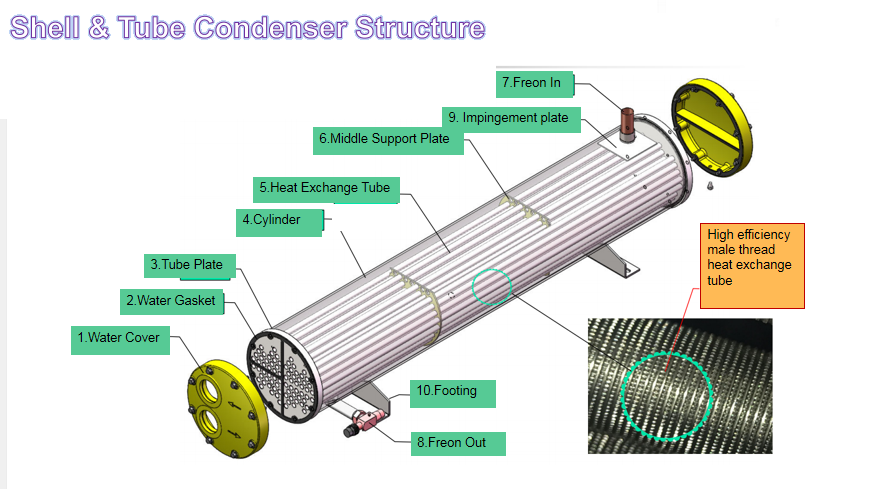

The tube plate is a titanium steel composite sheet, it is not only resistant to seawater corrosion, but also improves the service life.

The inner tube adopts high efficiency internal thread heat exchange tube, which greatly improves the heat exchange efficiency.

The marine environment has high salinity and humidity characteristics. When the condenser is heated by seawater or air, it is necessary to consider the issues of seawater and salt corrosion.

Wuxi Lvjie Machinery Co.,Ltd designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications . Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.

FAQ:
1.Are you factory?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.

2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!

3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.

4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.

5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
